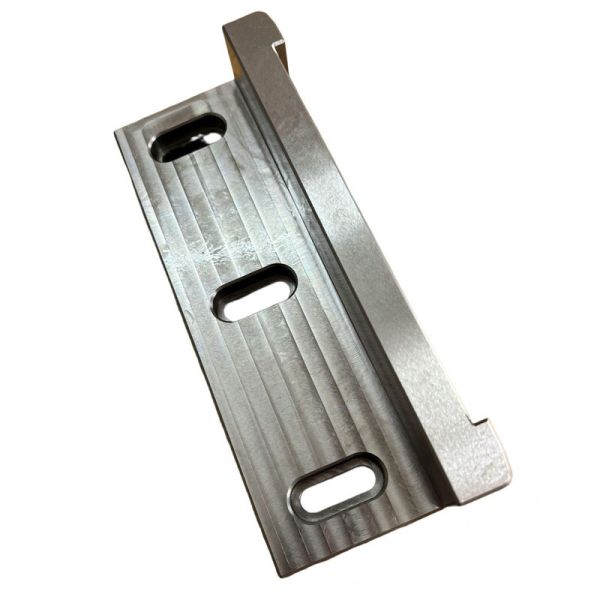

5-Axis CNC Milled Precision Machined Components with High Tolerance and Multi-Surface CNC Milled Mold Insert

Name: 5Axis CNC Milled Precision Machined Components with High Tolerance and MultiSurface CNC Milled Mold Insert
Brand: IMission
Price: 0.1 USD

Quality 5-Axis CNC Milled Precision Machined Components with High Tolerance and Multi-Surface CNC Milled Mold Insert for sale

Brand Name : IMission

Model Number : ODM and OEM

Certification : ISO9001

Place of Origin : China

MOQ : I PC

Price : 0.1~5USD

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000pcs per month

Delivery Time : 7~35 working days

Packaging Details : Bubble and Carton or Customization

Material : Steel

Weight : 0.1-10kg

Key Word : CNC Milling Parts

Shipping Method : Express, Air, Sea, Etc.

Feature : Durable And High Precision

Processing : CNC, Turning, Milling, Auto Lathe, Grinding, Stamping, Laser Cutting, Welding, 3D printing, Die Casting, Injection,etc.

Surface Finishing : Polishing, Grinding, Anodize, Oxide, Laser, Engrave, Painting, Powder Coating, Hardness, etc.

Material Available : Aluminum, Copper (Brass), Stainless Steel, Steel, Acetal, ABS, PVDF, PVC, Titanium,Etc.

Highlight : ISO9001 Certified CNC Milling Parts，100% Inspection CNC Machined Parts，3D Printing Precision Milled Components

Contact Now

5-Axis CNC Milled Aerodynamic Impeller and Multi-Surface CNC Milled Mold Insert

Technical Overview

We provide comprehensive precision CNC milling services utilizing advanced multi-axis machining centers to produce complex components with exceptional dimensional accuracy and superior surface finishes. Our milling capabilities support industries ranging from aerospace and medical to electronics and industrial machinery with both prototyping and high-volume production.

CNC Milling Parts Specifications

Product Name	CNC Milling Parts
Material Available	Steel
Processing	CNC
Tolerance	±0.002~0.005mm
Drawing Accepted	IGES(igs), STEP(stp), SolidWorks (sodprt), PRT, AutoCad, or Samples
Inspection	CMM, Projector, Height Gauge, etc.
Lead Time	7~35 working days
Quality Assurance	ISO9001:2015, SGS, RoHs
Payment Term	MoneyGram, Western Union, T/T, D/P, D/A, L/C
Price	According to your drawing or requirements
Engineer Support	Available for engineering assistance and drawings design

Packaging & Delivery

Packaging	Bubble and Carton or Customization
Port	Shenzhen

5-Axis CNC Milled Precision Machined Components with High Tolerance and Multi-Surface CNC Milled Mold Insert

CNC Milling Parts Key Features & Capabilities

Exceptional Precision & Tolerance Control

Achieve tight dimensional tolerances down to ±0.005mm for high-precision applications with consistent geometries across batch production.

Versatile Material Compatibility

Process a wide range of materials including aluminum alloys, stainless steel, titanium, brass, and engineering plastics.

Complex Geometry Machining Capability

Create intricate shapes including 3D contours, deep pockets, internal threads, and custom cavities.

Secondary Operations & Finishing

A. Value-Added Services

Operation	Equipment/Process	Capability	Typical Tolerances
CNC Turning	Live tooling on mills, separate lathes	Turning features on milled parts	±0.01mm
Grinding	Surface, cylindrical, jig grinders	Precision flatness, parallelism, size	±0.002mm
EDM	Wire and sinker EDM	Complex geometries, hard materials	±0.005mm
Heat Treatment	Vacuum furnaces, atmosphere controlled	Hardening, tempering, stress relief	Material dependent
Welding	TIG, laser, electron beam	Component assembly, repair	±0.05mm after weld
Assembly	Press fits, adhesive, fastening	Multi-component assemblies	As per drawing

B. Surface Finishing Options

Finish Type	Process Method	Surface Ra (μm)	Characteristics & Applications
As-Machined	Standard CNC milling	0.8-3.2	Cost-effective, visible tool marks, general applications
Bead Blasting	Glass bead, aluminum oxide	0.8-1.6	Matte finish, uniform appearance, stress relief
Polishing	Mechanical, chemical, electro	0.025-0.4	Reflective, smooth, food, medical, optical
Anodizing	Type I-III, hardcoat (Al)	Base material dependent	Decorative, corrosion resistant, wear resistant
Plating	Nickel, chrome, zinc, tin	Varies	Corrosion protection, appearance, solderability
Powder Coating	Electrostatic application	N/A (coating)	Durable, color options, corrosion protection
Passivation	Nitric or citric acid (SS)	Base material finish	Corrosion resistance restoration
Laser Marking	Fiber, YAG lasers	N/A (marking)	Permanent identification, serialization, logos
Tumbling/Vibratory	Media finishing	0.4-1.6	Deburring, edge breaking, surface smoothing

Quality Assurance & Inspection

A. Inspection Equipment & Capabilities

CMM (Coordinate Measuring Machines): 3D measurement with 0.001mm accuracy, temperature controlled

Optical Comparators/Vision Systems: Non-contact measurement, 2D profile verification

Surface Roughness Testers: Contact and non-contact Ra, Rz, Rq measurements

Roundness/Form Testers: Cylindricity, concentricity, flatness verification

Hardness Testers: Rockwell, Brinell, Vickers, micro-hardness

Portable Arms: Articulated arms with laser scanner for large parts

Digital Height Gauges: Precision height measurement with 0.001mm resolution

Gauge Blocks & Calibrated Instruments: Full set to ISO 3650 standards

Force/Torque Measurement: For assembly validation, spring constant verification

B. Quality Management System

ISO 9001:2015 Certified: Full quality management system implementation

First Article Inspection: AS9102, PPAP, or custom FAIR documentation

Statistical Process Control: Real-time monitoring of critical characteristics

Material Certification: Mill test reports, material traceability to heat/lot

Calibration Program: All inspection equipment calibrated to NIST-traceable standards

Document Control: Revision-controlled drawings, specifications, procedures

Non-Conformance System: Documented containment, root cause analysis, corrective action

Target Industries & Applications

Aerospace & Defense

Components: Structural frames, brackets, housings, turbine components, fittings
Materials: Aluminum (2024, 7075), titanium, Inconel, high-strength steels
Standards: AS9100, NADCAP (machining), MIL specifications, customer-specific
Critical Requirements: Fatigue resistance, weight optimization, documentation, traceability

Medical & Life Sciences

Components: Surgical instruments, implantable devices, diagnostic equipment, prosthetics
Materials: 316L stainless, titanium (Grade 5, 23), PEEK, cobalt-chrome
Requirements: Biocompatibility, cleanroom manufacturing, sterilization compatibility
Regulations: FDA compliance, ISO 13485, USP Class VI testing where applicable

Automotive & Motorsports

Components: Engine parts, transmission housings, suspension components, brackets
Materials: Aluminum, various steels, brass, magnesium (racing)
Production Volumes: Prototype to high-volume (10,000+ parts)
Special Capabilities: JIT delivery, kanban systems, production line support

Electronics & Semiconductor

Components: Enclosures, heat sinks, wafer handling, test fixtures, connector bodies
Materials: Aluminum, copper, engineering plastics, composites
Precision Requirements: Often ±0.005mm or better, micron-level flatness
Cleanliness: ESD-safe materials, particulate control, specialized cleaning

Industrial Machinery & Automation

Components: Machine frames, brackets, guides, robotic components, fixture
Materials: Carbon steel, aluminum, stainless, cast iron
Requirements: Wear resistance, dimensional stability, rigidity
Capabilities: Large part machining, weldment preparation, assembly interfaces
